Purpose: To develop and verify system administration and vulnerabil...

Purpose: To develop and verify system administration and vulnerability management procedures which implement host based security capabilities for Windows 8.1

Objectives
1. Develop systems administration procedures to configure and manage host-based security capabilities (firewall and anti-virus/anti-malware).
2. Develop systems management procedures to scan for and remediate software and configuration vulnerabilities in Windows 8.1 systems.

Overview
In this lab, our focus is upon implementing and managing host-based security for Windows 8.1 systems using the following tools:
• Windows Defender
• Windows Firewall
• Microsoft Baseline Security Analyzer (MBSA)
Note: Windows Defender and Windows Firewall are found under Control Panel. MBSA can be found using Windows Search (Windows Key + R).
For each tool, you will research and then write a step-by-step procedure to configure the tool according to security best practices for Windows 8.1 hosts. Each of these tools can be used as part of an overall information security vulnerability management business process.

You will write three separate procedures for this lab:
(a) Managing Windows Defender
(b) Managing Windows Firewall
(c) Managing Vulnerabilities using Microsoft Baseline Security Analyzer

Each procedure will have the following major sections (see Figure 1):
• Title:
• Operating Environment:
• Description:
• Notes, Warnings, & Restrictions:
• Resources (Further Reading):
• Procedures:

Some procedures will contain a large number of steps. To make the procedures easier to read, you should divide your procedures into groups of related steps. Place a group heading (e.g. Scanning for Threats) at the beginning of each group. Each group heading should be followed by a brief paragraph that explains the purpose of the group (e.g. This group (or “section”) contains step by step instructions for running scans using Windows Defender….)

Title:

Operating Environment:
1. Hardware
2. Software

Description:

Notes, Warnings, & Restrictions:

Resources (Further Reading):
1.
2.
3.

Procedures:

[Group Heading]
Brief introduction paragraph for this group of steps
1.
2.
3.

[Group Heading]
Brief introduction paragraph for this group of steps
1.
2.
3.

Instructions

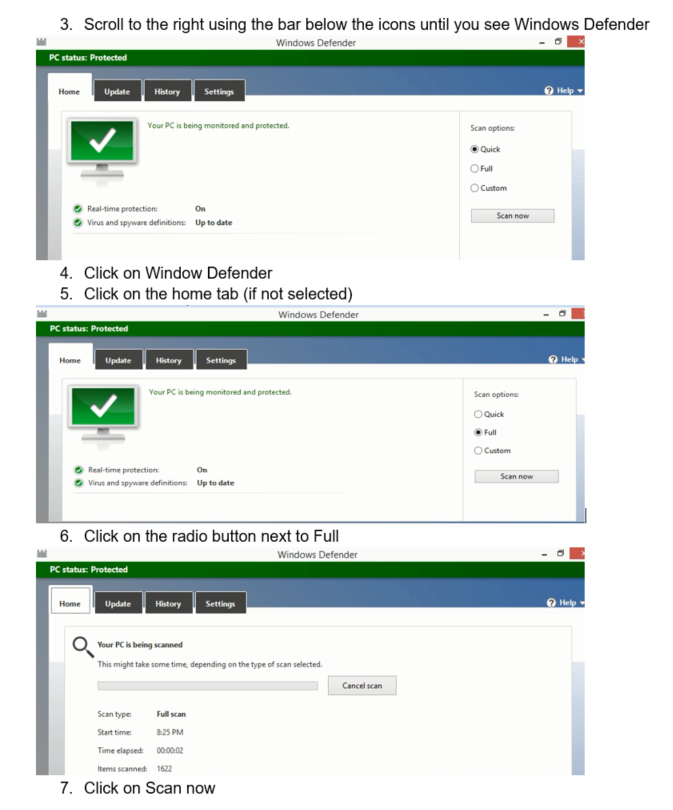

Part (a): Managing Windows Defender
1. Investigate the use of Windows Defender to protect a Windows 8/8.1 system against viruses, spyware, and other forms of malware. Your investigation should include researching best practices for configuring and using host-based anti-malware software.
2. Develop step by step procedures to implement best practices for protecting a Windows 8/8.1 system from malware. At a minimum, your procedures must accomplish the following:
a. Update anti-virus definition files
b. Configure real-time scanning
c. Full system scanning
d. Fast or quick scan for high vulnerability areas of the system
e. Removable media scanning
f. Reviewing scan results including reviewing any quarantined files or detected malware
3. As you run your tests, collect screen snapshots to illustrate key steps in your procedures. (Use the snipping tool on your local PC to snapshot portions of the VDA browser or client window.) Insert these snapshots at the appropriate points in your procedure. The snapshots must show the procedures as run in the VDA environment.
4. Incorporate your screen snapshots for key steps into the draft procedures. Each snapshot should be placed UNDER (after) the step to which it applies. Captions are not required.
5. Make any additional changes required to address issues found during testing of the step-by-step procedures.
Part (b): Managing Windows Firewall

1. Investigate the use of Windows Firewall to protect a Windows 8/8.1 system from network-based intrusions or attacks.
2. Identify appropriate sources of information (e.g. Windows Help, Microsoft Technet, etc.) for instructions for configuring Windows Firewall for Windows 8/8.1. Using those sources, research the procedures required to perform the following tasks:
a. Use “Allow an app or feature through Windows Firewall” to allow an application to communicate externally (send/receive data via a network connection)
b. Use Advanced Settings to configure Windows Firewall to allow or block network access by software applications, utilities, and operating system components
3. Develop a systems administration procedure for Windows Firewall which can be used to allow a new application to communicate externally using the network connection. Use Internet Explorer as your example application. (Use the “Allow another app …” button from the “Allow an app or feature …” menu item.)
4. Develop a systems administration procedure for Windows Firewall which can be used to allow or block a Windows 8/8.1 application, capability, or feature using the “Advanced Settings” menu item. Use “remote assistance” as your example capability to be blocked.
5. As you run your tests, collect screen snapshots to illustrate key steps in your procedures. (Use the snipping tool on your local PC to snapshot portions of the VDA browser or client window.) Insert these snapshots at the appropriate points in your procedure. The snapshots must show the procedures as run in the VDA environment.
6. Incorporate your screen snapshots for key steps into the draft procedures. Each snapshot should be placed UNDER (after) the step to which it applies. Captions are not required.
7. Make any additional changes required to address issues found during testing of the step-by-step procedures.

Part (c): Manage Vulnerabilities Using Microsoft Baseline Security Analyzer (MBSA)
Note: Before running MBSA, launch Internet Explorer to complete the “run once” setup. (This is a VDA requirement and should not be part of your procedure.) For some “drill down” links in the scan reports, MBSA launches Internet Explorer to display additional information (i.e. “How to correct this”).
1. Investigate the use of MBSA to detect vulnerabilities in a Windows 8/8.1 system
2. Identify appropriate sources of information (e.g. Windows Help, Microsoft Technet, etc.) for instructions for configuring MBSA to scan a Windows 8/8.1 system. Using those sources, research the procedures required to perform the following tasks:
a. Configure MBSA to scan a system for vulnerabilities including:
i. Check for Windows administrative vulnerabilities
ii. Check for weak passwords
iii. Check for Internet Information Services (IIS) administrative vulnerabilities
iv. Check for SQL administrative vulnerabilities
v. Check for security updates (missing updates)
b. Use MBSA to scan a system
c. View reports from scans including reviewing individual vulnerabilities as reported by MBSA
d. Copy, save and print scan reports
3. Develop a systems administration procedure to accomplish the tasks listed in item #2. Note: your procedure should only apply to scanning the local host (the computer that MBSA is installed on). Do not include scanning multiple systems or scanning a remote target host.
4. As you run your tests, collect screen snapshots to illustrate key steps in your procedures. (Use the snipping tool on your local PC to snapshot portions of the VDA browser or client window.) Insert these snapshots at the appropriate points in your procedure. The snapshots must show the procedures as run in the VDA environment.
5. Incorporate your screen snapshots for key steps into the draft procedures. Each snapshot should be placed UNDER (after) the step to which it applies. Captions are not required.
6. Make any additional changes required to address issues found during testing of the step-by-step procedures.
